Projects, Squares, Blocks and Land Plots

A land-subdivision business does not enter its portfolio plot by plot. It buys or develops a piece of ground, cuts it into sectors, cuts those into blocks and cuts the blocks into plots — and Nama lets you build the records the same way, top-down, with one button at each level that creates the next hundred records for you.

This page covers the land side of the estate tree. If you have not read How Properties Are Modelled yet, read it first — the availability markers and the cascade rules described there are what makes the rest of this page make sense.

The worked example runs throughout: Palm Compound, a development split into Square A and Square B, where Square A holds Block 3, and Block 3 is cut into 40 plots of 400 m² each.

Building the Tree with Four Buttons

Each level carries an action that generates the level below it. They chain in one direction:

RE Project  ──Generate Square──►  Square  ──Generate Blocks──►  Block
                                                                 ├──Generate Lands──►  RE Land
                                                                 └──(generate buildings)──►  RE Building

All of the generators ask the same four questions, so learning one is learning all of them:

Question	What it does	For Block 3's plots
Count	how many records to create	40
Prefix	the leading text of every code	LX-
Suffix length	how many digits the number is padded to	2
First number	where the numbering starts	1

Answering as above produces LX-01 … LX-40 in one go. Each new record is created already pointing at its parent, and inherits the parent's project, square, address and analytic dimensions, so the 40 plots come out of the generator already knowing they belong to Block 3 in Square A of Palm Compound.

Save first

The generate buttons work on a saved record. Create the project, save it, then generate its squares.

RE Project — the top of the tree

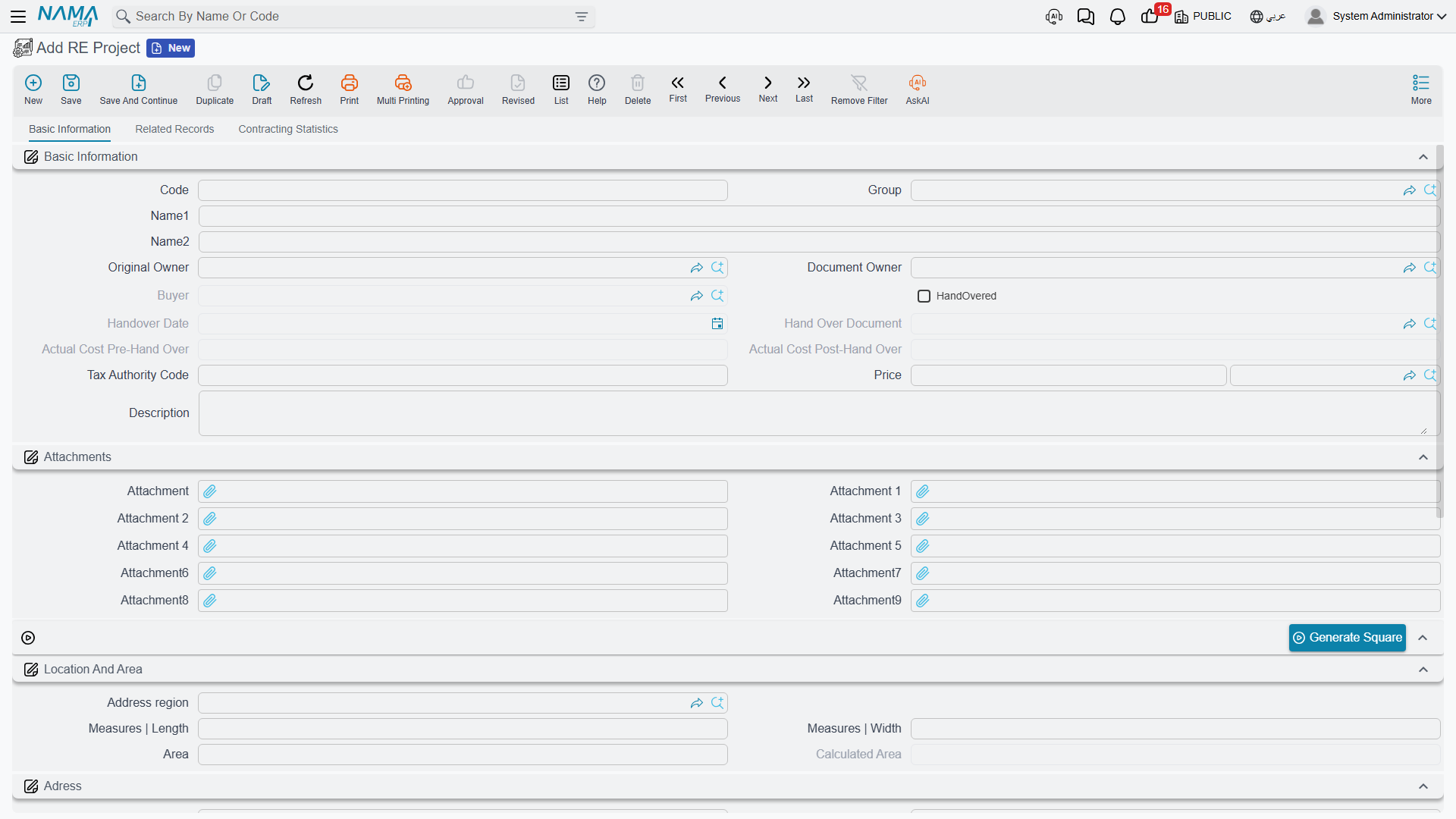

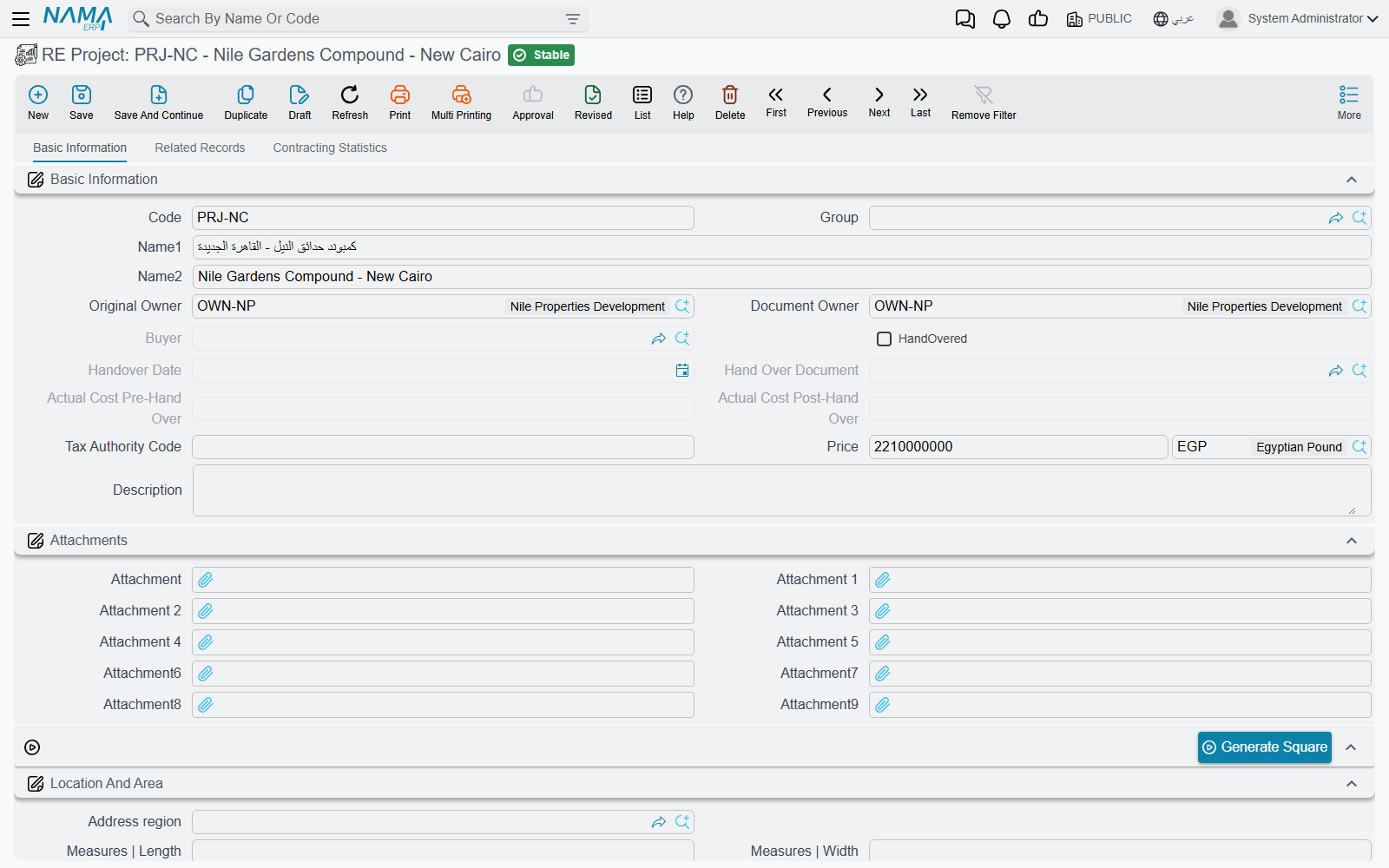

Real Estate and Property > Master Files > RE Project (العقارات و الممتلكات > الملفات > مشروع استثمار عقاري)

One record per development. Everything below it points back at it, which makes the project the natural place to ask portfolio-wide questions: how much of Palm Compound is sold, what the rent transactions look like, what the contracting cost statistics say.

Beyond the fields every estate has, a project carries a price with its currency, a length, a width and the area those two produce. The Location And Area group is where you enter them; the Adress group underneath holds the full postal address and the four boundaries, and both are copied downwards to everything you generate from here.

The second page, Related Records, is the one you will actually live on: separate lists of the project's squares, blocks, buildings, rental units and land plots, plus its rent and sales transactions. A third page of contracting cost statistics appears when the Contracting module is part of your installation.

The single action on the screen is Generate Square (إنشاء المربعات).

Square — the optional middle layer

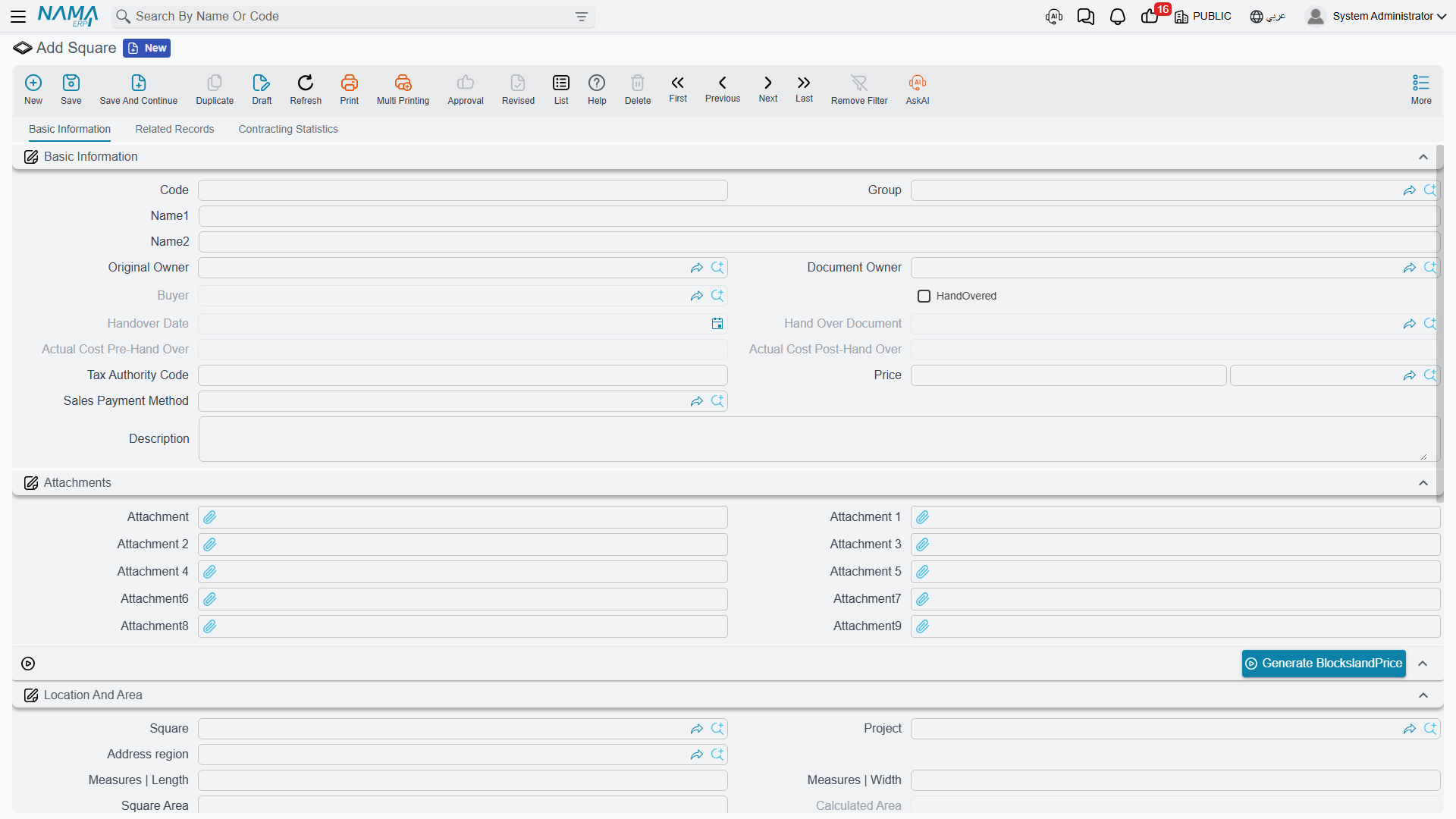

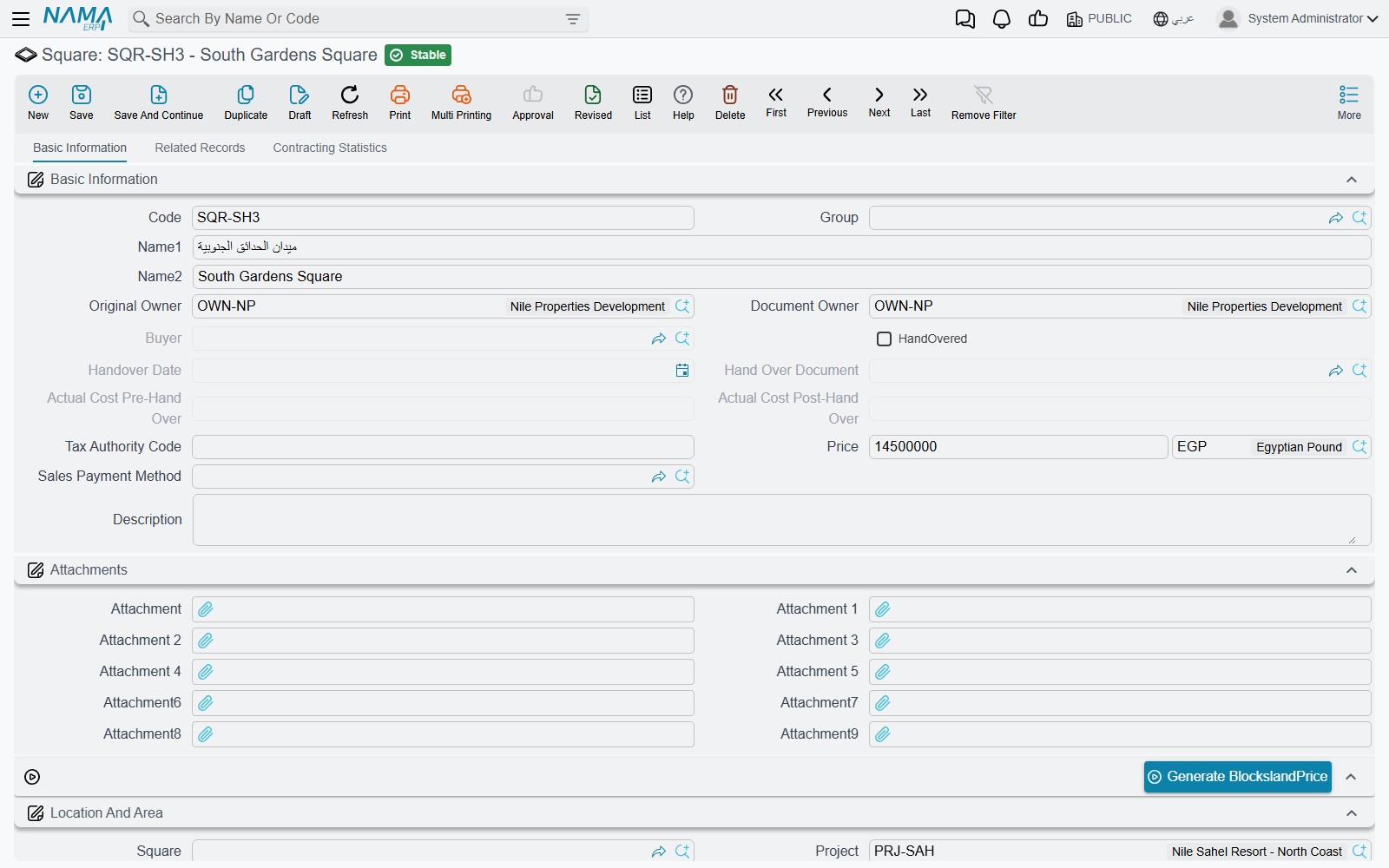

Real Estate and Property > Master Files > Square (… > الملفات > مربع)

A square groups blocks. It is genuinely optional — plenty of installations go straight from project to block — but it earns its place as soon as a development is phased or sold in sectors, because it gives you a level to report on and a level to hold an address.

Squares have the same price / length / width / area block as a project, and they also carry a Calculated Area that adds up the land plots beneath them — recalculated every time one of those plots is saved. Its Related Records page lists the square's blocks with their status, area and price side by side, which is the fastest view of "how much of Square A is still sellable".

The action here is Generate Blocks (إنشاء بلوكات). Generated blocks arrive with the square's project, address, original owner and dimensions already filled.

Block — the level that nests inside itself

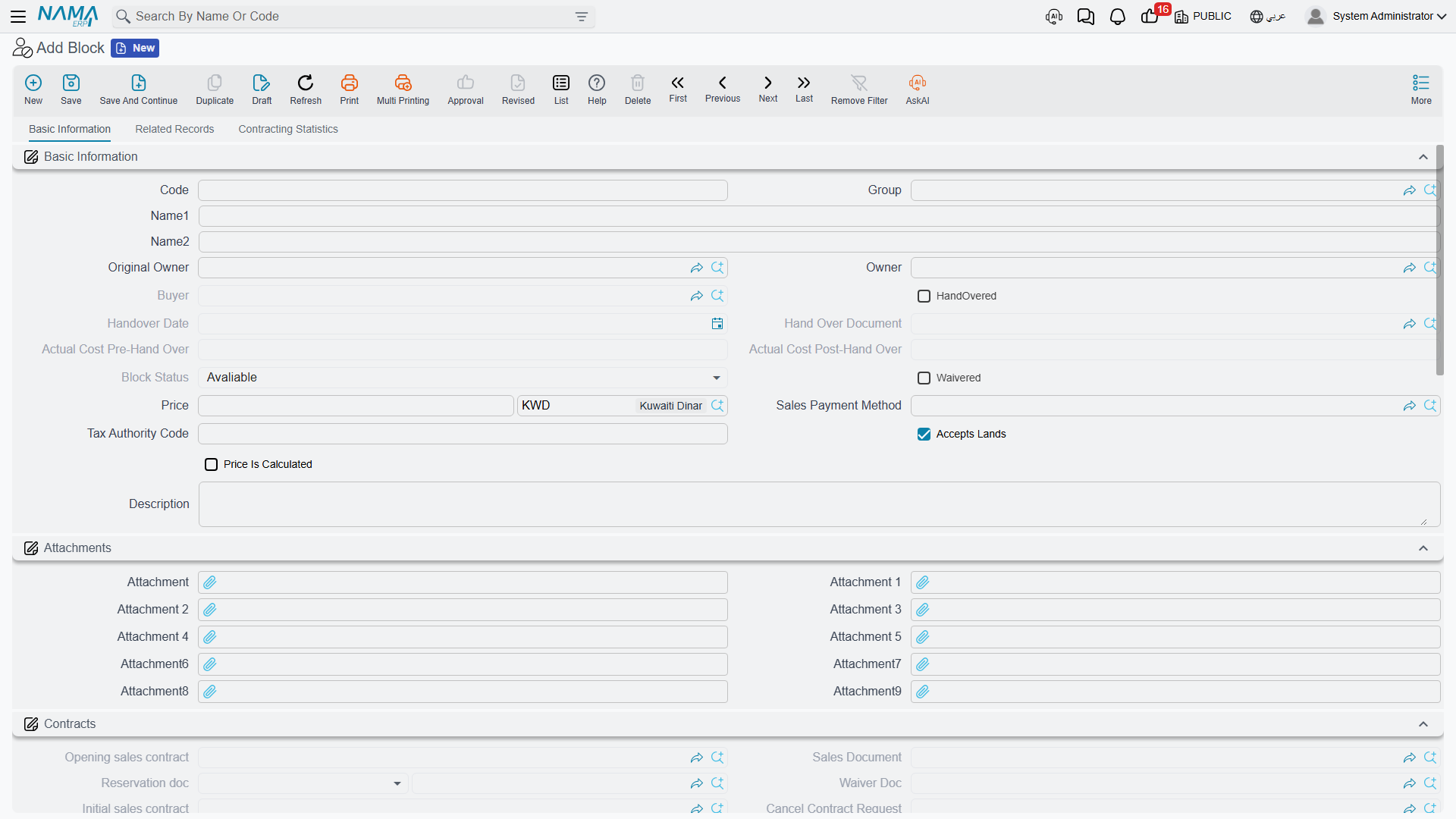

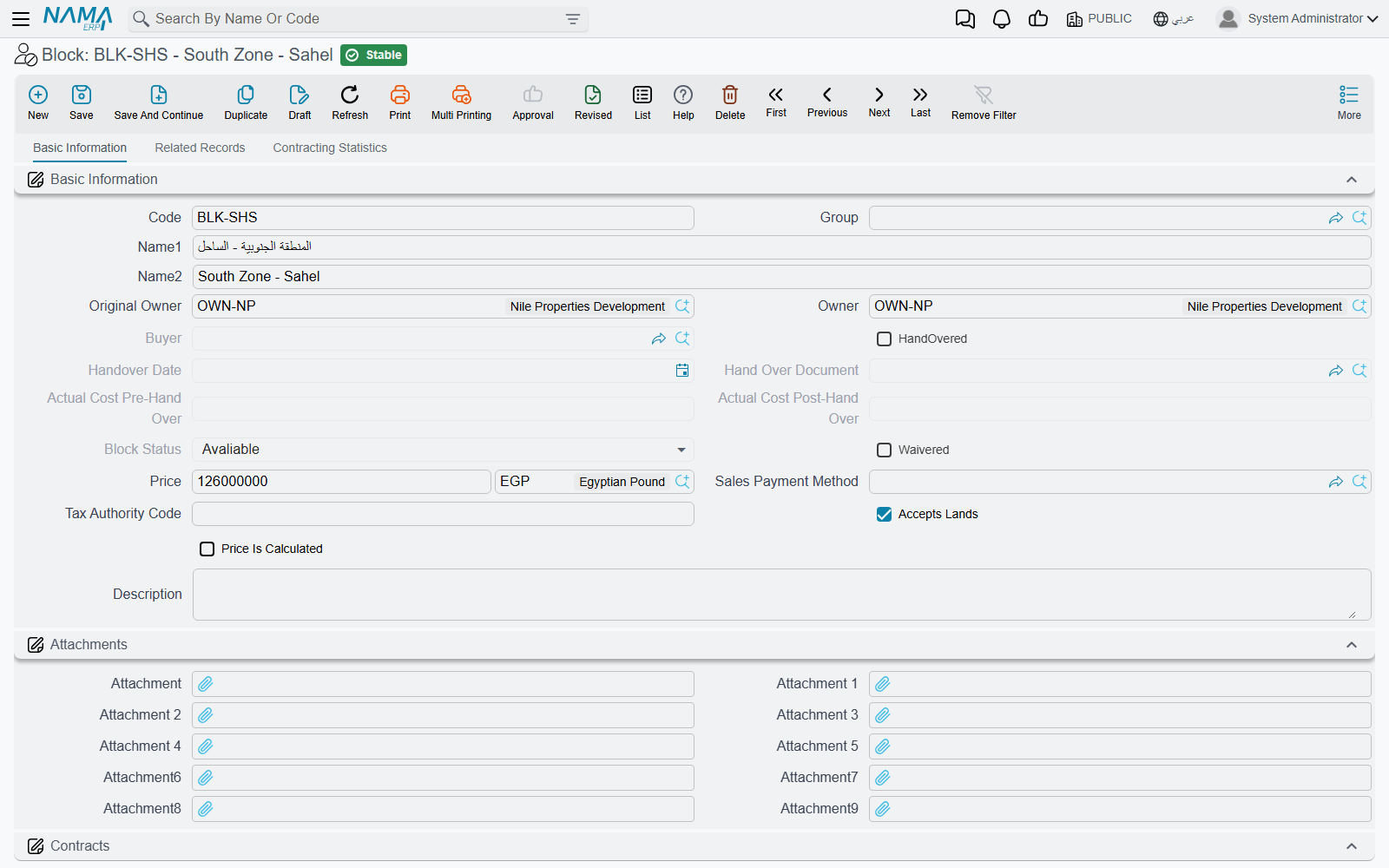

Real Estate and Property > Master Files > Block (… > الملفات > بلوك)

The block is the most interesting record on this page, for two reasons: it can contain itself, and it is the level at which the system keeps score of how much has been sold.

Accepts Elements — the rule that decides what a block may hold

A new block is created with Accepts Elements (يقبل عناصر) switched on. That one switch decides the block's role:

• Accepts Elements is on — the block is a leaf. It may hold land plots, and the plot's block picker will only ever offer you leaf blocks.
• Accepts Elements is off — the block is a branch. It may hold child blocks, but a land plot saved against it is refused with "This block Can not contains Lands".

Try to file a child block under a leaf block and the save is rejected on the parent-block field with "The Parent block Can not be Aleaf". The net rule is easy to remember once you see both halves together: plots hang off leaf blocks, child blocks hang off branch blocks. Either kind may also hold buildings.

In the worked example Block 3 is a leaf block, so it can be cut into the 40 plots. Had Palm Compound needed Block 3 to be divided into 3A, 3B and 3C first, Block 3 would have had Accepts Elements turned off and each of 3A/3B/3C would have been the leaf.

The system maintains a hierarchy path and a level number behind the scenes so that a block always knows every descendant it has, however deep the nesting goes. Move a block and the levels of everything beneath it are recomputed for you.

Price Is Calculated — letting the plots price the block

Price Is Calculated (احتساب سعر البلوك تلقائياً) turns the block's price into a running total. With it on, saving a plot adds that plot's price into the block, and moving the plot elsewhere or changing its price adjusts the block accordingly. With it off, the block's price is simply whatever you typed.

Alongside it, Calculated Area sums the areas of the block's plots — 40 × 400 m² = 16,000 m² for Block 3 — while the block's own area stays whatever length × width says the block measures.

Owner Details — several people owning one thing

Blocks and land plots both carry an Owner Details (تفاصيل الملاك) grid: one row per owner, each with a percentage and a remark. This is how you record co-ownership of the ground itself, separately from the single Original Owner on the header. Joint ownership on the accounting side is handled differently, through a group owner — see Owners, Buyers and Standard Contract Clauses.

The buttons on a block

Button	What it does
Generate Lands (إنشاء أراضي)	the four generator questions; creates the plots under this block
(generate buildings)	the same four questions plus two switches, add mosque and add garage; creates buildings under this block with those markers set and the block's original owner as their owner
Reserve (حجز)	refuses unless the block reads Avaliable; opens a new reservation document in a pop-up, already carrying this block, its owner, its price and its remarks
Sell (بيع)	refuses if the block is already Sold; opens a new sales contract prefilled the same way
Revert Sale (اتاحة للبيع)	only works on a block whose status is Sold; puts both the derived status and the user override back to Avaliable

Reserving or selling a block is the cascade in action: the reservation or sale runs down to the block's child blocks, its plots, its buildings, those buildings' floors and their units, all at once.

RE Land — the plot that gets sold

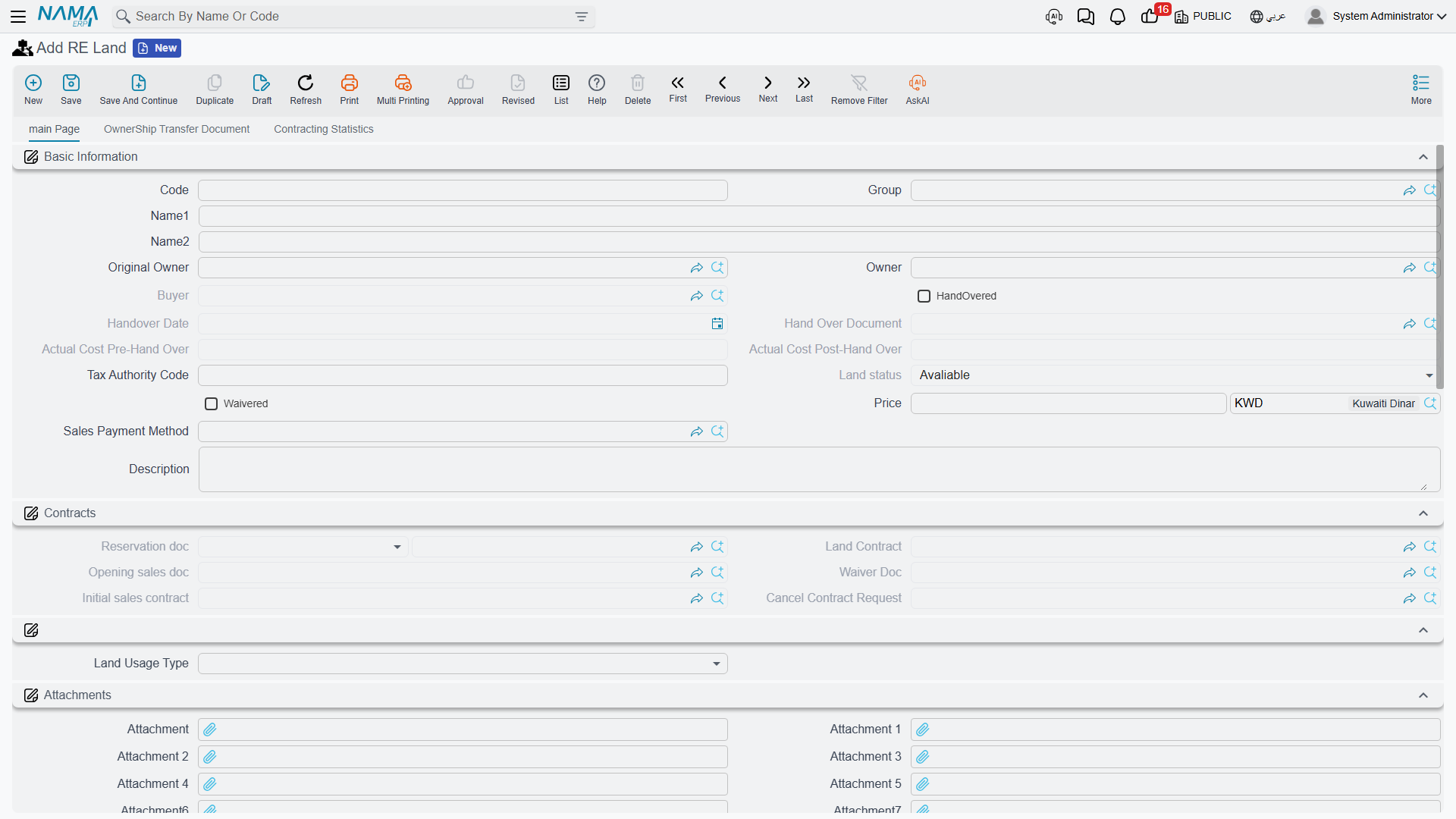

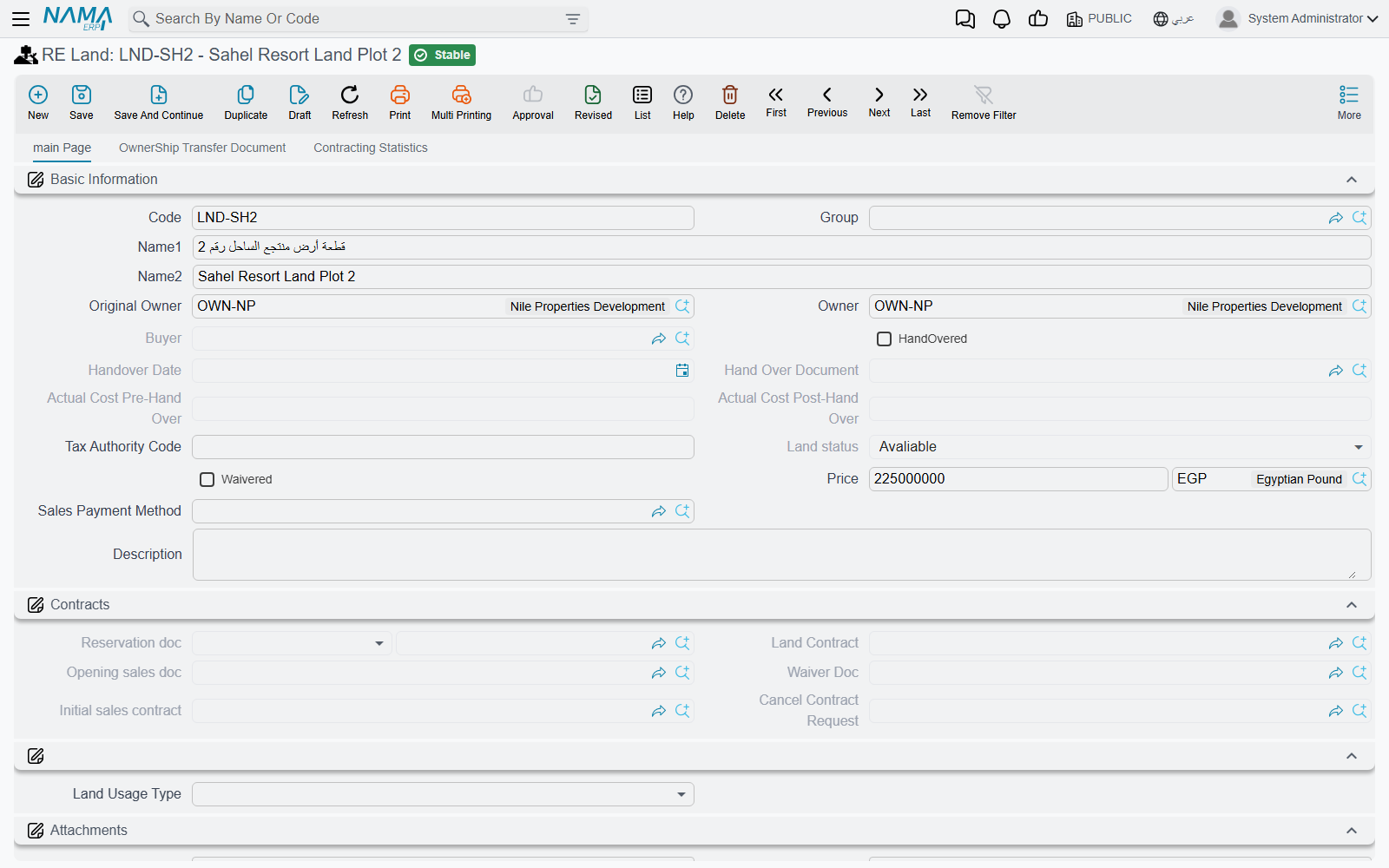

Real Estate and Property > Master Files > RE Land (… > الملفات > قطعة أرض)

An individual plot inside a leaf block: dimensions, four named neighbours, a usage type and a price. This is the thing a subdivision business actually sells.

A plot's own fields are few. Land Usage Type (الإستخدام) classifies it as Housing (سكني), Commercial (تجارى) or Housing Commercial (سكني تجاري), with fourteen spare "other" slots for local classifications. Length and width produce the area as you type. The price carries its own currency. Everything else on the screen is either inherited from the estate model or filled by documents: the Contracts group collects the reservation, sales, opening-sales, waiver and initial-contract documents that have touched this plot, so the plot's whole commercial history is one glance.

A plot's Land Status starts life as Avaliable and is moved by documents: a sales contract sets it to Sold and rewrites the plot's original owner to the buyer; a reservation sets it to Reserved; a waiver can push it back to Avaliable when the waiver returns the plot to the company. The Revert Sale button (اتاحة للبيع) is the manual escape hatch — it only accepts a plot that is currently Sold, and it clears both the derived status and the user override back to Avaliable.

The same Reserve and Sell buttons as on the block open a reservation document or a sales contract in a pop-up, prefilled with the plot, its block, square and project, its owner, its price and its remarks — which is the fastest way to sell a plot without retyping anything.

What saving a plot changes elsewhere

A land plot is small, but committing one touches several records above it:

1. The parent block's and the parent square's Calculated Area are recomputed.
2. If the plot is anything other than Avaliable, the parent block is forced to Un Avaliable — this is the roll-up in its simplest form.
3. If the parent block has Price Is Calculated on, the plot's price is added into the block's price (and removed from the block it left, if it moved).
4. The plot's position in the block hierarchy is refreshed.

The worked example, end to end

Palm Compound is created and saved, then Generate Square with count 2 and prefix SQ- produces Square A and Square B. On Square A, Generate Blocks with count 5 produces five blocks; Block 3 keeps Accepts Elements on. On Block 3, Generate Lands with count 40, prefix LX-, suffix length 2 and first number 1 produces LX-01 … LX-40. Each plot is given length 20 and width 20, so each area comes out at 400 m² and Block 3's Calculated Area reaches 16,000 m².

A buyer takes plot LX-04. Its status becomes Sold, its original owner becomes the buyer, and Block 3 immediately reads Un Avaliable — the block can no longer be sold as one piece. Square A and Palm Compound are marked partially Sold. The other 39 plots are unaffected and remain Avaliable for sale.

Where the Costs Land

Everything you generate on this page eventually needs a cost basis. A developer incurs cost per project — the roads in Palm Compound, the wall around Square A — but needs to know the cost of plot LX-04. That distribution, and the Assigned Cost it writes onto each estate, is covered in Distributing Project Costs Over Properties.

For the vertical half of the tree — buildings, floors, units, unit groups and unit models — carry on to Buildings, Floors and Rental Units. To take a plot to market, see The Property Sales Cycle.
