Car Status Configurations

إعدادت حالة حاله السياره / Car Status Configurations — سيارات > ملفات السيارات > إعدادت حالة حاله السياره. (The Arabic menu label carries a duplicated word; the record is the car status configuration.)

This is where you draw the life of a car. Not where you read it — where you draw it. It is the only record in the cars half of the module that turns a pile of documents into a lifecycle, and until it exists and is attached to an item, every car document in the module saves successfully and changes nothing about the car.

Required licence

srvcenter-subitems.

There is no built-in lifecycle

Say it plainly, because the status names in the list look so much like a workflow that everybody assumes one is already wired up.

The only status the product itself ever assigns is the first one. When a car record is created from a document line it is stamped ما قبل المبدئي / Pre Initial, and that is the entire extent of hard-coded status behaviour in the module. A purchase invoice does not "make the car In Transit". A receipt does not "make it Free Stock". A sales invoice does not "make it Invoiced". Every one of those transitions exists only because somebody typed a row into this configuration.

The consequence cuts both ways. It means you can model a lifecycle that matches how your showroom actually works — an importer's dealership and a used-car lot need very different chains. It also means a database where nobody filled this in behaves as though the whole status feature is broken, which is exactly what it looks like from the outside.

How it is attached

The configuration is attached to the item, at Item ▸ Configurations ▸ Car Status Configurations. One configuration can serve many items, and that is usually how it is done — one record for "passenger cars", one for "commercial vehicles" — but every item that has cars needs one pointed at it.

Do not rely on Default SubItem Configuration

The Service Center settings screen has an option called إعدادات حالة الصنف الفرعي الإفتراضية / Default SubItem Configuration, and it is not the fallback its name promises.

It is consulted for exactly one purpose: supplying the status filter rows for the car picker on document lines, and only when the item has no configuration of its own.

It does not feed the status engine, and it does not feed automatic car creation. Both of those read the item's own configuration and refuse to proceed without it — automatic creation fails outright with "Item … does not have Car Status Configurations". Attach a real configuration to every item that has cars; the module-level default will not rescue you.

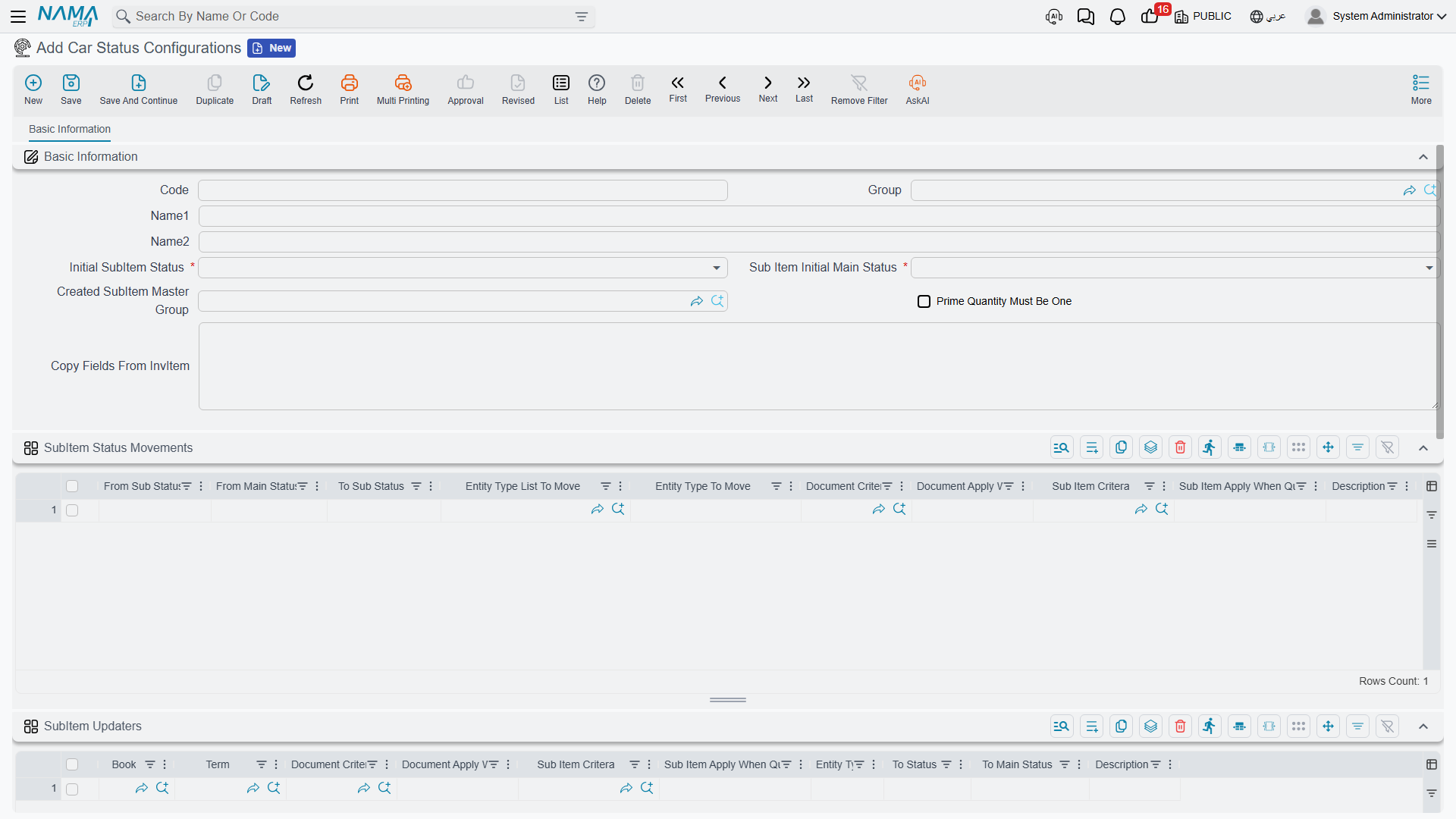

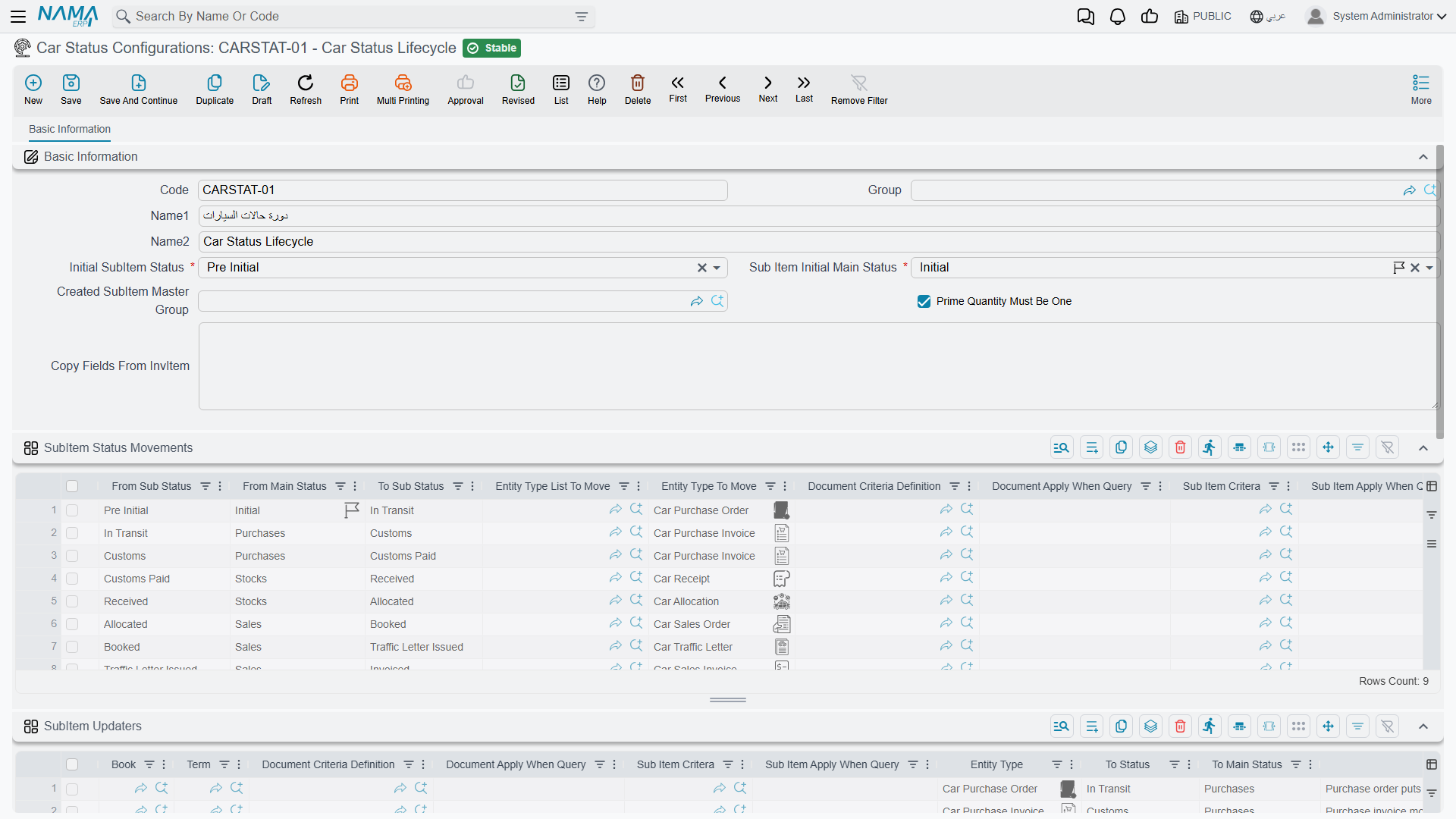

The screen — a header and four grids

It is all one page: the header at the top, then SubItem Status Movements and SubItem Updaters stacked one under the other, then the groups and filters grids:

Header

Field	English	Notes
الحالة المبدئية	Initial SubItem Status	Required. The state a car is deemed to be in before its first status entry, and the state it falls back to when all its entries are removed
الحالة الرئيسية المبدئية	Sub Item Initial Main Status	Required. The same, for the coarser main-status axis
مجموعة الصنف الفرعي المُنشأ	Created SubItem Master Group	The master group new car records land in — and therefore their coding sequence and their generic dimensions. Automatic creation fails if this is empty
الكمية الرئيسية يجب ان تساوي الواحد الصحيح	Prime Quantity Must Be One	Refuses any document line that carries a car and a quantity other than 1
نسخ الحقول من الصنف	Copy Fields From InvItem	A field map applied to every car of the item whenever the item is saved

Prime Quantity Must Be One deserves a moment. Tick it. It is the one setting that turns the most common data-entry mistake in the module — typing a quantity of 6 on one line instead of six lines of 1 — from a silent, wrong car record into a refusal at the point of saving.

Grid 1 — سطور تحديث حالة الصنف الفرعي / SubItem Updaters

Which document sets which status. This is the grid you spend your time in.

Each row is a rule: when a document of this type, in this book, on this term, matching these criteria, is committed against a car matching these criteria — set the car to this status, and optionally this main status.

Its columns are: document book, document term, a document criteria definition, a document apply-when query, a car criteria definition, a car apply-when query, the entity type, the target status, the target main status, and remarks. An empty column matches anything, which is what makes a rule as simple as "any Car Purchase Invoice → Customs" a single row with two fields filled in.

First match wins. Order the grid from the most specific rule to the most general.

The To Main Status column has an extra value, بدون / None, which means "move the sub status but leave the main status alone".

Grid 2 — سطور حركات حالة الصنف الفرعي / SubItem Status Movements

Which moves are legal. This is the whitelist, and it is enforced hard.

Each row says a car may move from this status (and optionally from this main status) to that status, and names the document types allowed to make that move. Anything not on the list is refused at commit with:

Customer Car can not change status from … - main status … to … - main status … in document … for Item … in index …

That message is the module's most-seen error, and it almost always means the movements grid is missing a row, not that the user did anything wrong.

Grid 3 — مجموعات الصنف الفرعي / SubItem Groups

An override for the Created SubItem Master Group: pick a different master group per combination of the five generic dimensions. Useful when cars for the Riyadh branch should be coded differently from cars for Jeddah. When no row matches, the header's group is used.

Grid 4 — فلاتر الأصناف الفرعية في المستندات / Filters For SubItems In Documents

Which statuses may be picked in the car searcher, per entity type, book and term — up to five statuses per row. This is how you stop a salesperson choosing a car that is still at customs on a sales invoice.

The searcher applies two more filters of its own, always: only cars of the line's item, and only cars not flagged Prevent Sales. And unless the term switches Do Not Filter Sub Items By From Document Sub Items on, it also restricts the list to cars already on the From Document.

What the save checks — and what it does not

Saving the configuration checks three things:

• a warning if a movement row has the same from and to status;
• a failure if the initial status does not appear as a from status in at least one movement row — "You must add a line with the status … in the field from status in lines …";
• a failure if a filter row fills both the single entity type and the entity type list.

The two grids are never cross-checked

Nothing verifies that a status your updater rows can produce is reachable through your movement rows. You can save a configuration that looks complete, and discover the gap only when a real document is refused in front of a customer with "Customer Car can not change status from … to …".

Build the movements grid first, then the updaters, and walk one test car through the whole chain on a sandbox before you go live.

The replay rule, and why back-dating hurts

The engine does not simply "set the status". Every document that touches a car writes a status entry — a dated row saying which document moved the car and to what. When any of them is committed, the system collects all of that car's entries, from every document of every type, sorts them by value date and then creation date, and chains them: each entry's from status is the previous entry's to status, and the very first entry starts from the configuration's initial status. Each link in the chain is then checked against the movements grid. The car's current status is simply the last entry's target.

By default the effective date is the document's value date; a term can name a different date field through the Sub Item Status Value Date Field ID option.

A back-dated document re-derives everything after it

Because the whole history is re-sorted on every commit, inserting a document in the middle of a car's past re-chains every later transition. A move that was legal when it was made can become illegal, and the back-dated document is then refused with an error that names the other document's statuses — which reads as though the wrong document is at fault.

Plan for it: correct a car's history from the newest document backwards, or delete the later documents, insert the correction, and re-raise them. Deleting a document removes its entries and recomputes the car back to its previous state, so the mechanism is reversible — it is just noisy.

The status catalogue

Twenty values ship in the list. The table below is the catalogue, plus the document family each value was named for.

The right-hand column is a suggested configuration, not built-in behaviour

Nothing in the product connects any of these statuses to any document. The "typical rule" column describes the updater row most dealerships end up writing — it is a starting point for your own configuration, and it describes nothing that happens until you type it in.

Status	Arabic	Typical rule (you configure this)	What it means in the yard
Pre Initial	ما قبل المبدئي	The system, at creation from a document line	The record exists; nothing has happened yet
Initial	مبدئي	Named as the configuration's Initial Status	The opening state of the chain
In Transit	بالطريق	Car Purchase Order or Proforma Purchase Invoice	Ordered from the manufacturer, on the water
Customs	الجمارك	Car Purchase Invoice	Landed, sitting at customs
Customs Paid	تم دفع الجمارك	Whichever document you use for the customs stage	Duties settled
Received	تم تسليمه	Car Receipt — reversed by Car Receipt Cancel	Physically received into the warehouse
Free Stock	مخزون متاح	Car Receipt or a stock document	On the floor, unreserved
Stock Consignment	مخزون أمانات	A consignment document	Held on consignment
Booked	محجوز	Sales Quotation Request, Sales Quotation or Sales Order	Reserved for a customer
Allocated	مخصص	Car Allocation — reversed by Allocation Cancel	Assigned to a customer, branch or salesperson
Traffic Letter Requested	مطلوب له خطاب مرور	Traffic Letter Request — reversed by its cancel	Registration letter requested
Traffic Letter Issued	مُصدر له خطاب مرور	Traffic Letter — reversed by its cancel	Registration letter issued
Invoiced	مفوتر كلياً	Car Sales Invoice or Proforma Sales Invoice — reversed by the Sales Return	Sold and invoiced
Totally Delivered	توصيل كلي	A delivery or issue document	Handed to the customer
Final Delivered	توصيل نهائي	Car Final Delivery — reversed by its cancel	Final hand-over complete
Other 1 … Other 5	أخرى ١ … أخرى ٥	Free for your own stages	Whatever your showroom needs

One label is worth flagging so it does not confuse people: Received is translated تم تسليمه — "has been handed over" — where the meaning is "has been received". In a list that also contains توصيل كلي and توصيل نهائي it reads backwards. Take the meaning from the English.

The main status

A second, coarser axis stored alongside the status, with five values: مبدئي / Initial, بضاعة الامانات / Consignments, مخزونات الشركة / Stocks, المشتريات / Purchases and مبيعات / Sales. It exists so a report can ask "how many cars are on the purchase side" without enumerating a dozen sub-statuses. Movement rows can require a particular from main status; updater rows set the new one, or leave it alone with None.

A worked configuration

This is the configuration Al-Sahra attached to MDL-RIMAL24, and every status you meet in the showroom examples elsewhere in this documentation comes from it.

Header: initial status Initial, initial main status Purchases, created group GRP-CARS-NEW, Prime Quantity Must Be One ticked.

Updater rows, most specific first:

Entity type	Book	To status	To main status
Car Purchase Invoice	BK-SIPI	Customs	Purchases
Car Receipt	BK-SIR	Free Stock	Stocks
Car Sales Order	BK-SISO	Booked	Sales
Car Allocation	BK-SIA	Allocated	Sales
Traffic Letter Request	—	Traffic Letter Requested	None
Traffic Letter	—	Traffic Letter Issued	None
Car Sales Invoice	BK-SISI	Invoiced	Sales
Car Final Delivery	BK-SIFD	Final Delivered	Sales

Movement rows, allowing exactly that chain and its reversals:

From	To	Allowed document types
Initial	Customs	Car Purchase Invoice
Customs	Free Stock	Car Receipt
Free Stock	Booked	Car Sales Order
Booked	Allocated	Car Allocation
Allocated	Traffic Letter Requested	Traffic Letter Request
Traffic Letter Requested	Traffic Letter Issued	Traffic Letter
Traffic Letter Issued	Invoiced	Car Sales Invoice
Invoiced	Final Delivered	Car Final Delivery
Allocated	Free Stock	Car Allocation Cancel
Booked	Free Stock	Car Sales Order Cancel
Final Delivered	Invoiced	Car Final Delivery Cancel

Read "reversed by" in these two tables as status only. A cancel document in this module moves the car's status and nothing else — it does not reverse stock and it does not reverse accounting.

Note the reversals are rows like any other. A cancel document is not a special case to the engine — it writes an entry the same way, and if you do not give it a legal move it will be refused.

Filter rows keep the pickers honest: on the Car Sales Order, only Free Stock; on the Car Sales Invoice, only Allocated and Traffic Letter Issued.

CAR-000318 walks that chain from Customs on 10 February to Final Delivered on 3 March, and its Statistics tab carries one entry per step.
